Diagrams

This program generates diagrams from IMD16. The following section gives an overview about what formats are supported and the limitations.

Info

Be aware, this project is not meant to be used to create UML-Diagrams you can graphically edit later. It trys to produce the best automatic diagram with the different solutions instead. The approach is positioned more towards automation and forced regeneration of diagrams in a developer friendly way. Change the source (ili file) and regenerate. Never beautify by hand.

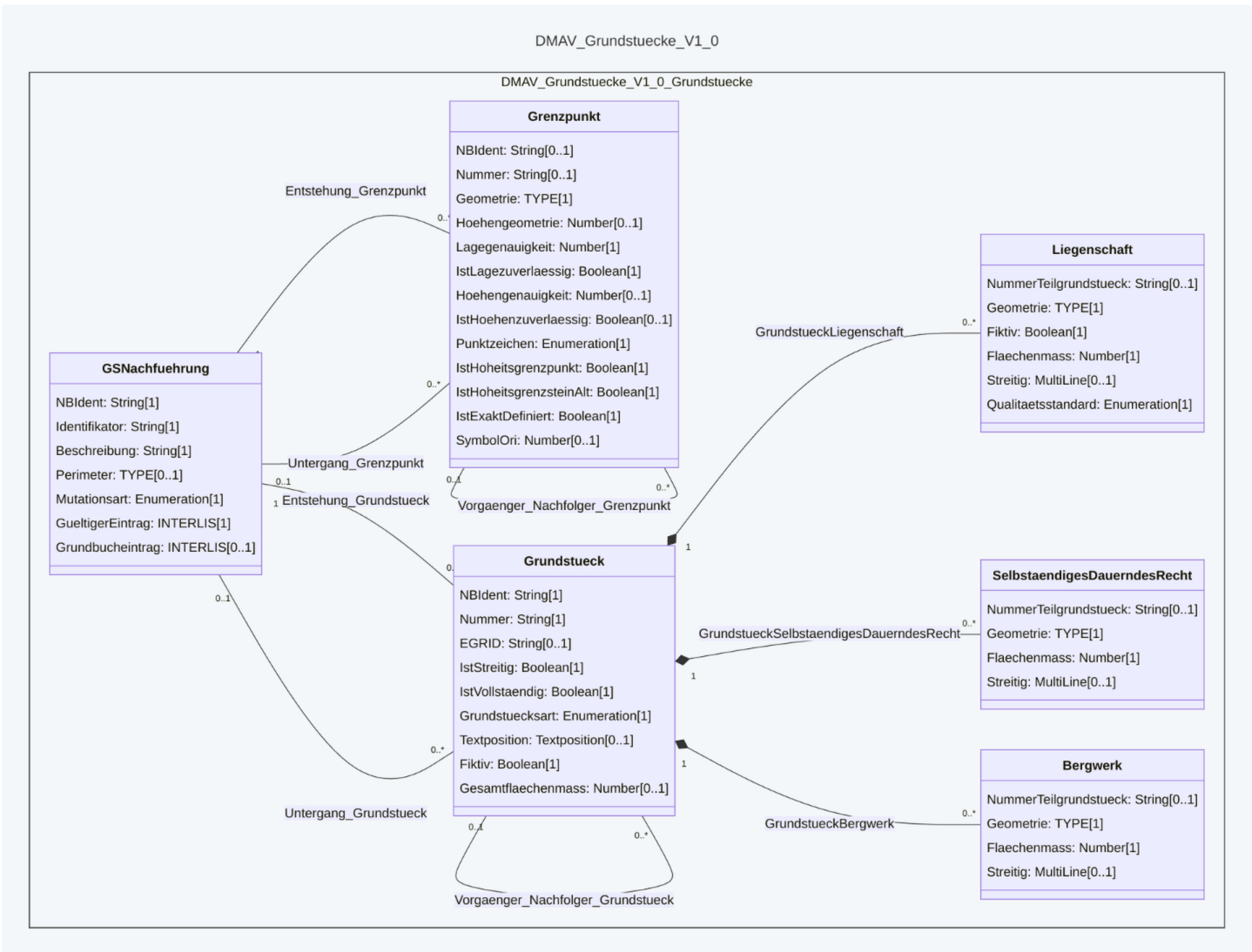

Mermaid

Mermaid is well known and widely used. Its strength is the wide support in many development tools (Ide's, github, gitlab, ...).

The format is a markdown code snippet. See mermaid documentation for details.

Note

The mermaid class diagram capabilities are limited. In addition, they depend heavily on the renderer you use to generate the diagram out of the markdown. That may be the plugin of your Ide, your browser or something else.

Limitations

Currently, known limitations are:

  • Nesting of namespaces is not supported by mermaid.
  • Potentially broken self references (awkward rendering of Cardinalities, strange positioning of connectors).
  • routing of connectors between classes is a bit flaky especially when it comes to larger diagrams
  • Some renderers do not allow '.' in names of namespaces!

PlantUML

PlantUML is a non-interactive tool which renders a specific syntax text file into the desired output. The aim is automation here too. We want to transform the understanding of imd16 into an uml diagram without any further tuning. This is, what PlantUML is good for. It renders quickly and produces nice outputs even on larger diagrams with a lot of content. Especially the routing of the connectors is looking better than with mermaid.

PlantUML Role Members

This is a variant of the standard plantuml above. It tries to keep things clean by adding the information of roles and their multiplicity in the frame of the class. Even if this is not pure UML anymore it improves readability on messy and complex diagrams.
