Python Classes usage
The following section will guide you through some general usage of the python library by example.
It is based on the example given in the start section - the OeREBKRMtrsfr_V2_0 model. If not
already done, you should head over and first create the python classes for that model as described.
Info

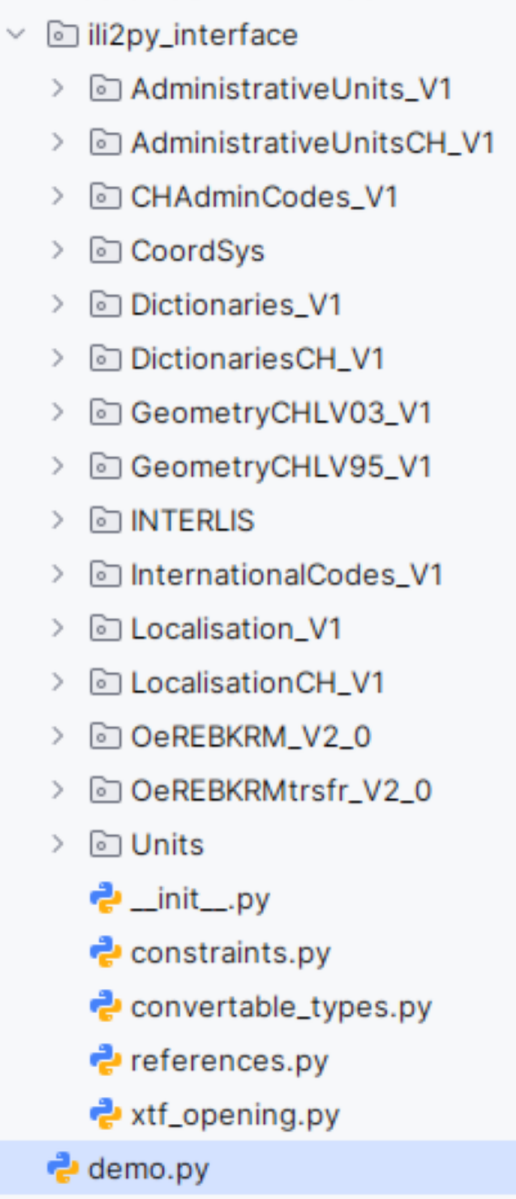

The following examples preassume you have called you library ili2py_interface and you have a python script next to that resulting folder like:
Tip
All following examples assume you are in a command line session in the root of the project as shown above.
After each change in the script you need to execute the script with python demo.py
Enumerations
As described in the user guide enumeration are stored as native python enums. But how you access them?
Add that to your python script.
The output should look like:
[<RechtsStatus.INKRAFT: 'inKraft'>, <RechtsStatus.AENDERUNGMITVORWIRKUNG: 'AenderungMitVorwirkung'>, <RechtsStatus.AENDERUNGOHNEVORWIRKUNG: 'AenderungOhneVorwirkung'>]
So you can see that the information of the value list is there.
How to access the content?
Alter your script to.
The output should look like:
ìnKraft
This is how you access the value lists defined originally in the interlis model. You find them by following the linked types in the IDE of your choice using go-to-definition features.
Access metainformation
Each class and each field in the created library has meta information stored.
How can we access it?
from ili2py_interface.OeREBKRMtrsfr_V2_0.Transferstruktur import Eigentumsbeschraenkung
from dataclasses import fields
print(fields(Eigentumsbeschraenkung)[2])
The output should look like:
Field(name='publiziertAb',type='str | None',default=None,default_factory=<dataclasses._MISSING_TYPE object at 0x7f0439902f90>,init=True,repr=True,hash=None,compare=True,metadata=mappingproxy({'type': 'Element', 'namespace': 'http://www.interlis.ch/INTERLIS2.3', 'interlis': {'oid': 'OeREBKRMtrsfr_V2_0.Transferstruktur.Eigentumsbeschraenkung.publiziertAb', 'meta_attributes': {}, 'type_restrictions': {'mandatory': True, 'kind': None, 'format': '"Year"-"Month"-"Day"', 'unit': None, 'ref_sys': None, 'clockwise': None, 'circular': None, 'abstract': False, 'final': False, 'generic': False, 'super': 'OeREBKRM_V2_0.Datum', 'type_related_type': False, 'multiplicity': {'min': 1, 'max': 1}, 'struct': 'INTERLIS.GregorianDate', 'min': '1848-1-1', 'max': '2100-12-31'}}, 'geometric': {'is_geometric': False, 'multi': False, 'point_like': False, 'line_like': False, 'polygon_like': False}}),kw_only=False,_field_type=_FIELD)
Fields of dataclasses can be accessed from a class or also from an instance. This is really handy since we also can
access this information at runtime on instantiated objects. We use the fields
method from the dataclasses library for that.
In the example above we access the 3rd field of the class Eigentumsbeschraenkung which is the publiziertAb attribute.
On that we now can access the dataclass native metadata attribute and in that the interlis specific information.
Alter your script:
from ili2py_interface.OeREBKRMtrsfr_V2_0.Transferstruktur import Eigentumsbeschraenkung
from dataclasses import fields
print(fields(Eigentumsbeschraenkung)[2].metadata['interlis']['type_restrictions'])
This gives:
{'mandatory': True, 'kind': None, 'format': '"Year"-"Month"-"Day"', 'unit': None, 'ref_sys': None, 'clockwise': None, 'circular': None, 'abstract': False, 'final': False, 'generic': False, 'super': 'OeREBKRM_V2_0.Datum', 'type_related_type': False, 'multiplicity': {'min': 1, 'max': 1}, 'struct': 'INTERLIS.GregorianDate', 'min': '1848-1-1', 'max': '2100-12-31'}
To access the metadata of the object instance itself:
